Meet the Agent Workflow Builder: Your No-Code AI Automation Platform
Transform your ideas into sophisticated automation pipelines using natural language and drag-and-drop magic
To follow along, here: https://github.com/Nikhil-Doye/workflow-builder.git is the GitHub repo. Connect with me via LinkedIn: https://www.linkedin.com/in/nikhil-doye
The Problem: Complex Automation Made Simple Imagine you need to scrape a website, analyze the content with AI, extract key insights, and send a formatted report to your team via Slack. Traditionally, this would require: - Writing web scraping scripts - Setting up AI API integrations - Building data processing pipelines - Creating notification systems - Managing error handling and retries
What if you could describe this entire workflow in plain English and have it built automatically? That’s exactly what the Agent Workflow Builder does. It’s an open-source, visual workflow builder that turns natural language descriptions into complex AI-powered automation pipelines — no coding required.
What Makes This Different? Unlike traditional workflow builders like Zapier or N8N, the Agent Workflow Builder is built specifically for AI-powered automation with several key innovations: AI-First Architecture - Natural Language Processing: Describe workflows in plain English - Intelligent Workflow Generation: AI creates complete workflow structures from descriptions - Context-Aware Suggestions: Get smart recommendations based on your current workflow - Automatic Validation: Built-in workflow validation and optimization tips Visual Drag-and-Drop Interface - React Flow Integration: Smooth, responsive node-based editor - Real-time Connection: Visual edges that show data flow - Live Execution Monitoring: Watch workflows run in real-time
Comprehensive Node Library
The builder includes 11 specialized node types for AI-powered automation:
// Available Node Types
const nodeTypes = {
dataInput: "Entry points (text, JSON, CSV, URL, PDF)",
webScraping: "Extract data from websites using Firecrawl AI",
llmTask: "Process data with AI models (DeepSeek, OpenAI)",
embeddingGenerator: "Create vector embeddings for semantic search",
similaritySearch: "Find similar content in vector stores",
structuredOutput: "Parse and structure data with JSON schemas",
database: "Perform database operations (query, insert, update, delete)",
slack: "Send messages and notifications to Slack",
discord: "Send messages and notifications to Discord",
gmail: "Send emails and manage Gmail communications",
dataOutput: "Export results in various formats"
};
How It Works: From Idea to Execution
- Natural Language Input Simply describe what you want to accomplish:
"Scrape the latest tech news from Hacker News, analyze the sentiment of each article, extract the top 5 most positive stories, and send a summary to our #tech-news Slack channel"
2. AI-Powered Workflow Generation
The system uses a sophisticated agent architecture to understand your request:
// Core Agent Architecture
export class WorkflowAgent {
async processRequest(userInput: string): Promise<AgentResult> {
// 1. Classify intent and extract entities
const intent = await this.classifyIntent(userInput);
const entities = await this.extractEntities(userInput, intent);
// 2. Generate workflow structure
const workflow = await this.generateWorkflowStructure(userInput, intent, entities);
// 3. Validate and optimize
const validation = await this.validateWorkflow(workflow, userInput);
return { success: true, data: workflow, confidence: validation.confidence };
}
}

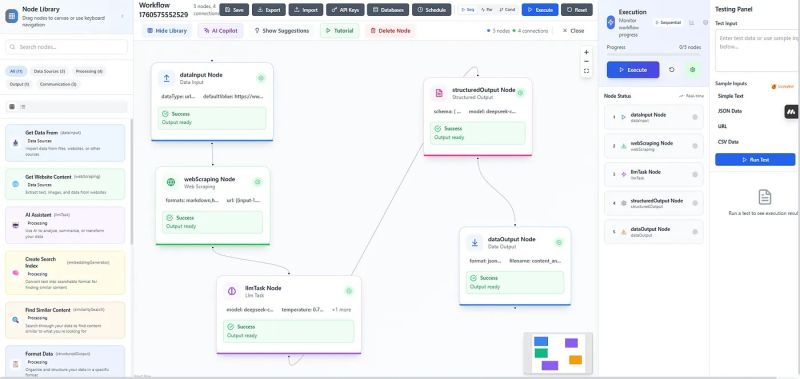

3. Visual Workflow Creation The AI generates a complete workflow structure with nodes, connections, and configurations:
{
"nodes": [
{
"type": "dataInput",
"label": "Hacker News URL",
"config": {
"dataType": "url",
"defaultValue": "https://news.ycombinator.com"
}
},
{
"type": "webScraping",
"label": "Scrape Articles",
"config": {
"url": "{{input.url}}",
"formats": ["markdown", "json"]
}
},
{
"type": "llmTask",
"label": "Analyze Sentiment",
"config": {
"prompt": "Analyze the sentiment of these articles: {{scraper.output}}",
"model": "gpt-4",
"temperature": 0.3
}
}
],
"edges": [
{ "source": "node-0", "target": "node-1" },
{ "source": "node-1", "target": "node-2" }
]
}
4. Real-Time Execution Watch your workflow execute with live status updates:
// Execution Engine with Real-time Updates
export class ExecutionEngine {
async executeWorkflow(workflowId: string, nodes: any[], edges: any[],
onNodeUpdate?: (nodeId: string, status: string, data?: any) => void) {
for (const node of executionOrder) {
// Update node status
onNodeUpdate?.(node.id, "running");
// Execute node processor
const result = await this.executeNode(node, plan);
// Update with results
onNodeUpdate?.(node.id, "completed", result.data);
}
}
}
Key Technical Features Smart Variable Substitution The system supports powerful variable substitution patterns:
// Variable substitution patterns
const patterns = {
nodeOutput: "{{nodeId.output}}", // Get node output
nodeData: "{{nodeId.data}}", // Get node data
nodeLabel: "{{nodeLabel.output}}", // Use friendly names
nestedProperty: "{{nodeId.data.title}}", // Access nested properties
multipleVars: "Process {{input.text}} with {{ai.model}}" // Multiple variables
};
// Example usage in LLM prompt
const prompt = `
Analyze the following content: {{webScraper.output}}
Focus on: {{user.preferences.topic}}
Output format: {{output.format}}
`;
Built-in error handling and recovery mechanisms:
// Error Context with Recovery Suggestions
interface ErrorContext {
stage: string;
toolName?: string;
inputParameters?: Record<string, any>;
partialResults?: Record<string, any>;
errorType: "tool_execution_failure" | "llm_error" | "validation_error";
suggestions?: string[];
}
// Example error handling
if (error.type === "llm_error") {
return {
suggestions: [
"Try reducing the prompt length",
"Check your API key configuration",
"Consider using a different model"
]
};
}
Flexible Execution Modes Support for different execution strategies:
// Execution modes
const executionModes = {
sequential: "Execute nodes one after another",
parallel: "Execute independent nodes simultaneously",
conditional: "Execute based on conditions and branching"
};
// Parallel execution example
const parallelGroups = [
{ nodes: ["scraper1", "scraper2"], maxConcurrency: 2 },
{ nodes: ["analyzer1", "analyzer2"], waitForAll: true }
];
Real-World Use Cases Content Marketing Automation "Scrape trending topics from Reddit, generate blog post ideas using AI, create social media posts for each idea, and schedule them in our content calendar"
Customer Support Workflow "Monitor support tickets, categorize them by urgency using AI, assign to appropriate team members, and send notifications via Slack"
Data Analysis Pipeline "Import sales data from our database, analyze trends with AI, generate insights report, and email it to stakeholders every Monday"
Lead Qualification System "Extract leads from LinkedIn, analyze their profiles with AI, score them based on our criteria, and add qualified leads to our CRM"
Getting Started
Installation
# Clone the repository git clone https://github.com/Nikhil-Doye/workflow-builder.git cd workflow-builder # Install dependencies npm install # Start the development server npm start
Configuration
Set up your API keys for full functionality:
// API Configuration
const apiKeys = {
deepSeek: "your-deepseek-api-key", // Primary LLM
openai: "your-openai-api-key", // Alternative LLM
firecrawl: "your-firecrawl-api-key", // Web scraping
pinecone: "your-pinecone-api-key" // Vector search
};
Your First Workflow 1. Open the AI Copilot: Click the “AI Copilot” button 2. Describe your workflow: “Scrape a website and analyze the content” 3. Review the generated workflow: The AI creates nodes and connections 4. Test and execute: Use the testing panel to run your workflow 5. Save and share: Export your workflow as JSON
Architecture Deep Dive
Component Structure
src/ ├── components/ │ ├── nodes/ # Node type components │ ├── WorkflowEditor.tsx # Main visual editor │ ├── CopilotPanel.tsx # AI assistant interface │ └── ExecutionPanel.tsx # Real-time execution monitoring ├── services/ │ ├── agents/ # AI agent system │ ├── processors/ # Node execution processors │ └── executionEngine.ts # Workflow execution engine ├── utils/ │ ├── variableSubstitution.ts # Variable handling │ ├── workflowValidator.ts # Validation logic │ └── workflowGenerator.ts # AI workflow generation └── store/ └── workflowStore.ts # State management with Zustand
State Management
The application uses Zustand for efficient state management:
interface WorkflowStore {
workflows: Workflow[];
currentWorkflow: Workflow | null;
isExecuting: boolean;
executionResults: Record<string, any>;
// Workflow management
createWorkflow: (name: string) => void;
executeWorkflow: (testInput?: string) => Promise<void>;
generateWorkflowFromDescription: (description: string) => Promise<void>;
// Node management
addNode: (type: string, position: { x: number; y: number }) => void;
updateNode: (nodeId: string, data: Partial<NodeData>) => void;
deleteNode: (nodeId: string) => void;
}
Advanced Features Workflow Validation
Comprehensive validation system with suggestions:
interface ValidationResult {
isValid: boolean;
issues: string[];
suggestions: string[];
complexity: "low" | "medium" | "high";
estimatedExecutionTime: number;
}
// Validation checks
const validationChecks = [
"Node configuration completeness",
"Data flow compatibility",
"Circular dependency detection",
"Resource usage estimation",
"Best practice recommendations"
];
Database Integration
Unified database connector supporting multiple databases:
// Supported database types
const supportedDatabases = {
mongodb: "Document-based operations",
mysql: "Relational database queries",
postgresql: "Advanced SQL operations"
};
// Example database node configuration
const dbConfig = {
operation: "query",
connectionId: "prod-db-connection",
query: "SELECT * FROM users WHERE created_at > ?",
parameters: ["2024–01–01"]
};
Scheduling and Automation
Built-in workflow scheduling system:
// Schedule configuration
const scheduleConfig = {
trigger: {
type: "cron",
expression: "0 9 * * 1–5", // Weekdays at 9 AM
timezone: "America/New_York"
},
settings: {
maxRetries: 3,
retryDelay: 5000,
notifyOnError: true
}
};
Performance and Scalability Execution Optimization
- Parallel Processing: Independent nodes run simultaneously - Caching: Results cached for repeated operations - Error Recovery: Automatic retry with exponential backoff - Resource Management: Configurable timeouts and limits Monitoring and Analytics - Real-time Status: Live execution monitoring - Performance Metrics: Execution time and resource usage - Error Tracking: Detailed error context and suggestions - Usage Analytics: Workflow performance insights
Future Roadmap
Planned Features - Custom Node Types: User-defined node processors - Workflow Templates: Pre-built workflow patterns - Team Collaboration: Multi-user workflow editing - API Integration: REST API for external integrations - Mobile App: iOS and Android applications Enterprise Features - SSO Integration: Single sign-on support - Audit Logging: Complete activity tracking - Role-based Access: Granular permission system - High Availability: Clustered deployment support
Conclusion
The Agent Workflow Builder represents a significant leap forward in no-code automation tools. By combining natural language processing with visual workflow design, it makes sophisticated AI-powered automation accessible to everyone from business users to developers. Whether you’re looking to automate content creation, streamline data processing, or build complex business workflows, the Agent Workflow Builder provides the tools and intelligence to make it happen — without writing a single line of code.
Ready to get started? Clone the repository, configure your API keys, and start building your first AI-powered workflow today!
