Multi-Tenant ASP.NET Core SaaS Applications: Architecture Patterns that Scale

How to design, implement, and scale SaaS platforms with tenant isolation, shared resources, and predictable performance.

Introduction Building a SaaS product is not just about shipping features, it’s about building an engine that scales gracefully. When your app moves from serving a handful of customers to hundreds or thousands, multi-tenancy becomes the backbone of your architecture.

ASP.NET Core provides powerful abstractions and extensibility points that make multi-tenancy possible, but the real challenge lies in choosing the right architecture pattern and managing complexity as you grow. In this article, we’ll unpack the core patterns of multi-tenant SaaS design in ASP.NET Core, explore tenant resolution, connection multiplexing, and configuration isolation, and end with a case study from a real-world hybrid model supporting over 100 clinics.

Understanding Multi-Tenancy A tenant is a logical group of users sharing the same data and configurations. Multi-tenancy determines how these tenants coexist within your infrastructure. There are two dominant patterns: 1. Database-per-Tenant Each tenant has its own database.

Pros: Strong data isolation, simplified data residency compliance, and independent scaling.
Cons: More databases to manage, higher operational overhead, and potential connection limits.

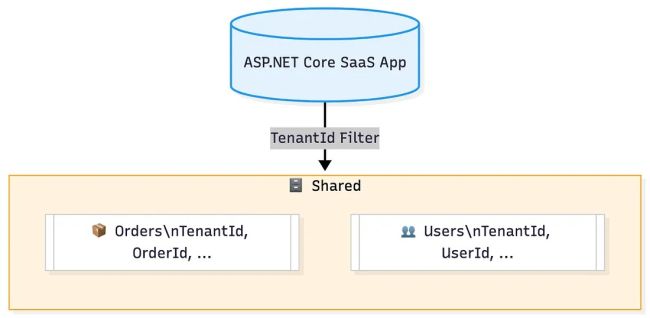

2. Shared Database with Tenant Discriminator All tenants share the same database, differentiated by a TenantId column in every multi-tenant table.

Pros: Simplified schema management, easier reporting across tenants, lower cost.
Cons: Weaker data isolation and increased risk of cross-tenant data leakage if queries are misconfigured.

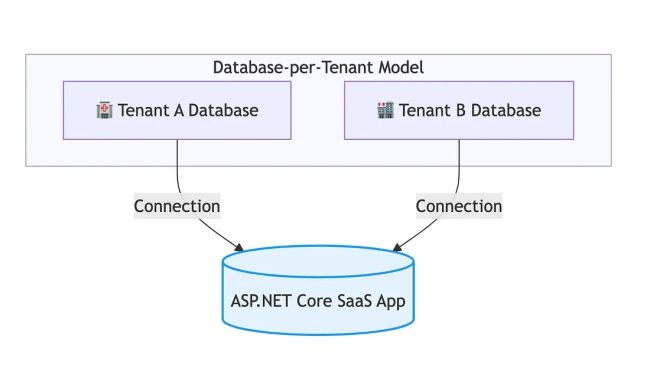

Example Diagram:

Many real-world systems adopt a hybrid approach, combining both models depending on scale, data sensitivity, and tenant size.

Tenant Context Resolution Every incoming HTTP request must be mapped to the correct tenant. In ASP.NET Core, this is often done through a middleware pipeline. Common strategies include:

Hostname Mapping: e.g., tenantA.app.com → Tenant A
Path Mapping: e.g., app.com/tenantA/...
Header or Token Mapping: e.g., X-Tenant-Id header or claims-based resolution

A TenantContext is typically injected into scoped services, ensuring tenant-specific configurations (like connection strings and feature toggles) are resolved at runtime. Best Practice: Cache tenant resolution results using distributed caching (e.g., Redis) to avoid database lookups on every request.

Connection Multiplexing and Resource Isolation For shared models, connection multiplexing is key. The goal is to reuse pooled database connections efficiently while preserving isolation at the query level. Techniques:

Use DbContextFactory<T> to create context instances per tenant dynamically.
Maintain connection string caches keyed by Tenant ID.
Implement query filters in Entity Framework Core using HasQueryFilter() for automatic tenant scoping.

For database-per-tenant models, connection pool fragmentation can become a bottleneck. Consider:

Using connection pooling libraries like Npgsql Multiplexing (for PostgreSQL).
Managing connection lifetime with timeouts and health checks.
Implementing lazy connection initialization only when tenant activity is detected.

Configuration and Feature Isolation Multi-tenancy isn’t just about data — it’s about behavior. Each tenant may have different:

Feature toggles
Authentication providers
Rate limits or SLA levels
UI branding or regional configurations

Use IOptionsSnapshot<T> or custom configuration providers that pull tenant-specific settings from a configuration store (SQL, Redis, or S3). Feature flags can be stored per tenant and injected into business logic through DI, ensuring that feature evaluation is centralized and auditable.

Architecture Patterns in Practice Let’s look at a real-world example. Case Study: B2B Medical Records Platform A SaaS platform serving 100+ clinics across regions is needed:

Strict data isolation for compliance (HIPAA)
Efficient onboarding and scaling
Shared infrastructure for updates and observability

Solution:

Small clinics shared a database using the Tenant Discriminator model.
Large hospitals received dedicated databases for compliance and performance.
A central Tenant Directory Service handled tenant metadata, routing, and connection string resolution.
Background services and reporting pipelines were aware of multi-tenancy, using tenant-aware jobs that processed data in parallel across tenants.

This hybrid model reduced costs by 60% while maintaining strong data boundaries.

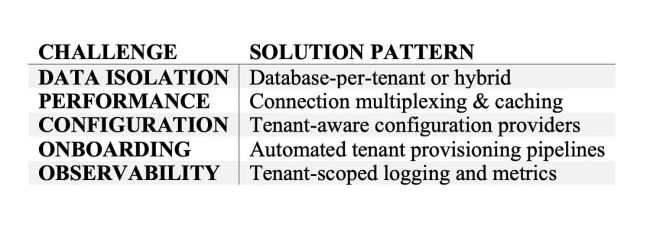

Key Takeaways

Conclusion Designing a scalable multi-tenant SaaS in ASP.NET Core isn’t about picking one model, it’s about balancing isolation, performance, and cost. Start simple, but architect for growth. As your tenants grow, so will your architecture. With a clean separation of tenant concerns and a well-defined resolution strategy, your SaaS will not only scale, it will thrive.
