Orchestrating Micro-Actions: Split Big Automations Between Zapier & n8n

From JOHNWICK

Learn how to split large automations into micro-actions across Zapier and n8n. Cut costs, dodge rate limits, and boost reliability with smart orchestration.


You don’t need a monolithic automation.
You need a choreography. Zapier is fantastic at touching dozens of SaaS apps with minimal setup. n8n is fantastic at programmable logic, branching, retries, and custom code. Put them together and you get a nimble system that scales without the “one mega-Zap to rule them all” headache. Let’s be real: the secret is not bigger workflows — it’s smaller, well-named micro-actions with clear handoffs.


The Core Idea: Micro-Actions, Not Mega-Flows Break the work into small, testable steps with single responsibility:

  • Zapier: Event capture + SaaS touchpoints (triggers, native actions, OAuth, human-friendly UI).
  • n8n: Orchestration brain (routing, transformations, batching, idempotency, retries, schedules).

Think of Zapier as the edge and n8n as the engine.


When to Use Which (Quick Matrix)

| Problem                             | Zapier          | n8n                   |
| ----------------------------------- | --------------- | --------------------- |
| Rapid integration with popular SaaS | ✅ Best          | ➖ Possible via nodes  |
| Complex branching/state machines    | ➖ Hard          | ✅ Best                |
| Heavy transforms / code             | ➖ Limited       | ✅ Code nodes          |
| Bulk/batch processing               | ➖ Costly        | ✅ Queues, loops       |
| Rate-limit resilience               | ➖ Basic         | ✅ Backoff + DLQ       |
| Observability & versioning          | ✅ Tasks history | ✅ Executions/Logs     |
| Per-event cost control              | ➖ Can spike     | ✅ Long-running, cheap |

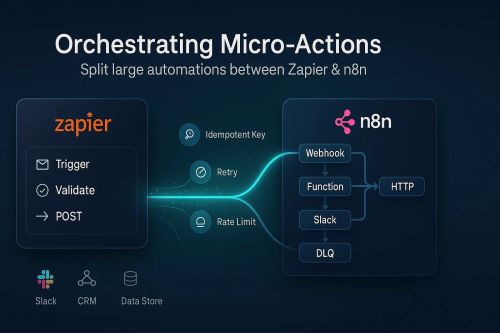

Architecture at a Glance

+------------------+         +---------------------------+
        |  SaaS Triggers   | ----->  |          Zapier           |
        | (Stripe, HubSpot)|         | 1. Capture event          |
        +------------------+         | 2. Validate + enrich      |
                                     | 3. POST to n8n webhook    |
                                     +-------------+-------------+
                                                   |
                                                   v
                                     +---------------------------+
                                     |            n8n            |
                                     | 4. Orchestrate workflow   |
                                     | 5. Fan-out / batching     |
                                     | 6. Retries + DLQ          |
                                     | 7. Call APIs (optional)   |
                                     +-------------+-------------+
                                                   |
                                                   v
                                     +---------------------------+
                                     |  Data stores / BI / Apps  |
                                     +---------------------------+

Principle: Zapier handles “app edge” and signs the envelope; n8n reads, decides, and drives the route.


A Real Example: Lead → CRM → Enrichment → Slack Goal: Capture a form submission, deduplicate in CRM, enrich with Clearbit-like data, and notify Slack — without melting budgets or rate limits. Split:

  • Zapier micro-action (edge):
  • Trigger: “New Form Submission.”
  • Steps:
  • Lightweight validation (“email looks valid?”, “UTM present?”).
  • Enrich with 1–2 cheap lookups (optional).
  • POST the normalized payload to https://n8n.example.com/webhook/leads.ingest with a signed header.

2. n8n orchestration:

  • Nodes:
  • Webhook (verify HMAC signature).
  • Function (idempotency: hash email+source; check Redis or DB).
  • If (new lead?).
  • HTTP Request to CRM with retry/backoff.
  • Sub-workflow: Enrichment fan-out (company, size, tech stack).
  • Merge results, decide SLA tier.
  • Slack notify channel w/ context; Email AEs if enterprise.

Why it works: Zapier’s per-task pricing doesn’t balloon with loops, while n8n can batch enrichment, respect rate limits, and recover from flakiness.


The Contract: Handoffs That Don’t Break Define a tiny, stable schema for every Zapier → n8n call. Zapier → n8n payload (example):

{
  "event": "lead.created",
  "ts": "2025-10-27T10:20:00Z",
  "source": "web.form",
  "lead": {
    "email": "[email protected]",
    "name": "Alex Rivera",
    "utm": {"campaign":"q4-launch","source":"linkedin"},
    "note": "Requested demo"
  },
  "trace_id": "zapr_01HFV0...",
  "v": 1
}

Headers:

  • X-Zap-Signature: sha256=... (HMAC of body)
  • X-Trace-Id: zapr_...

In n8n Webhook node, verify HMAC before doing anything. Store trace_id for correlation back to Zapier task history.


Error Handling & Micro-SLA

  • Idempotency: Use a lead.unique_key (e.g., lowercase email + source). If seen, short-circuit.
  • Retries: In n8n, wrap HTTP nodes with exponential backoff; escalate to a Dead-Letter Queue (DLQ) if 5xx or 429 after N tries.
  • Human-in-the-loop: If dedupe confidence < threshold, send a Slack “Resolve or Skip” button (n8n + Slack interactivity).

DLQ Sketch (n8n):

Webhook -> Try HTTP (max 4) -> If fail -> RabbitMQ/Redis list "dlq.leads"
                             -> If success -> continue

Run a scheduled n8n workflow to reprocess DLQ with a lower QPS.


Cost & Rate Limits: Practical Tactics

  • Shrink Zapier steps. Only the minimum to normalize and forward. Heavy loops? Offload to n8n.
  • Batch in n8n. Collect 25–100 items then call enrichment once; many APIs allow arrays.
  • Throttle in n8n. Use Wait + Rate Limit patterns to keep under 429.
  • Cache aggressively. If the same domain appears 50 times, enrich once and reuse.
  • Fan-out carefully. Parallelism is great — until an upstream vendor gets angry. Cap concurrency per host.


Versioning Without Fear

  • Zapier: Clone the Zap, test with a staging n8n webhook, then swap URLs during a quiet window.
  • n8n: Use Workflow versions + tags. Keep a “v1” endpoint stable; route to orchestrator_v2 behind a feature flag node.

Routing pattern:

if (headers['X-Feature'] === 'v2') -> new path
else -> stable path


Observability: See the Whole Dance

  • Correlation IDs: Flow the trace_id from Zapier into every n8n node and outbound API call.
  • Structured logs: In n8n Function nodes, console.log(JSON.stringify({...})) with trace_id, status, latency_ms.
  • Metrics: Count DLQ depth, success ratio, and per-vendor 429 rates. If a vendor starts throttling, auto-switch to “degraded” mode (e.g., skip non-critical enrichments).


Minimal Code You’ll Actually Use

Zapier Webhooks by Zap (POST to n8n):

POST /webhook/leads.ingest
Headers:
  Content-Type: application/json
  X-Trace-Id: {{zap_meta_human_readable_id}}
  X-Zap-Signature: {{hmac_sha256(body, ZAP_SECRET)}}
Body:
  {{json_lead_payload}}

n8n HMAC Verify (Function Node):

const crypto = require('crypto');
const secret = $env.ZAP_SECRET;
const sig = $json.headers['x-zap-signature'] || '';
const body = JSON.stringify($json.body);
const h = 'sha256=' + crypto.createHmac('sha256', secret).update(body).digest('hex');

if (h !== sig) {
  throw new Error('Invalid signature');
}

return [{ json: $json.body }];

n8n Idempotency (Function + Redis):

const key = `lead:${$json.lead.email.toLowerCase()}:${$json.source}`;
const exists = await redis.get(key);
if (exists) return []; // drop duplicate
await redis.set(key, '1', 'EX', 60*60*24);
return items;


Case Study: Cutting Per-Lead Cost by 62%

A B2B startup ran everything in a giant Zap: ingest form → enrich 3 vendors → branch by persona → Slack + CRM writes. It worked — until the campaign scaled. Problems: exploding task counts, duplicate leads, and periodic 429s that stalled the Zap.

Refactor:

  • Zapier: stayed as ingestion + basic validation + POST.
  • n8n: added batching, idempotency, and a DLQ.
  • Enrichment moved to n8n with caching by domain.

Results (one month):

  • Tasks reduced ~58% on Zapier (fewer steps executed per lead).
  • Retry success +18%, thanks to backoff and DLQ replay.
  • Per-lead cost down 62%, time-to-Slack message steady at <10s P95.

You might be wondering, “Did reliability drop?” It improved — because failures were visible, queued, and recoverable.


Naming & Governance (The Boring Stuff That Saves You)

  • Prefix everything: zap.edge.leads.ingest, n8n.orch.leads.v1.
  • Store a contract doc with JSON schema and example payloads.
  • Tag workflows with owners and RTO/SLA (“critical/5m”, “best-effort/24h”).
  • Run chaos drills: temporarily force 429 from a dev proxy and confirm DLQ + replay.


The Bottom Line

Split your big automation into micro-actions. Let Zapier excel at app integration and UX; let n8n excel at logic, batching, and resilience. You’ll spend less, move faster, and — most importantly — sleep better when a vendor sneezes at 3 a.m. CTA: If this resonated, drop your architecture in the comments, follow for more practical automation design, or ask for a template repo with n8n DLQ + Zapier contracts.
